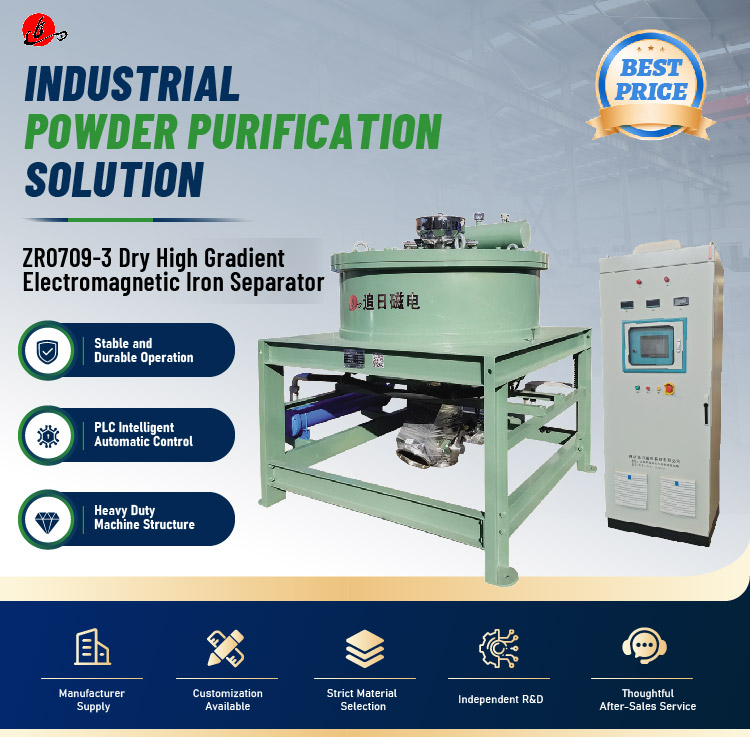

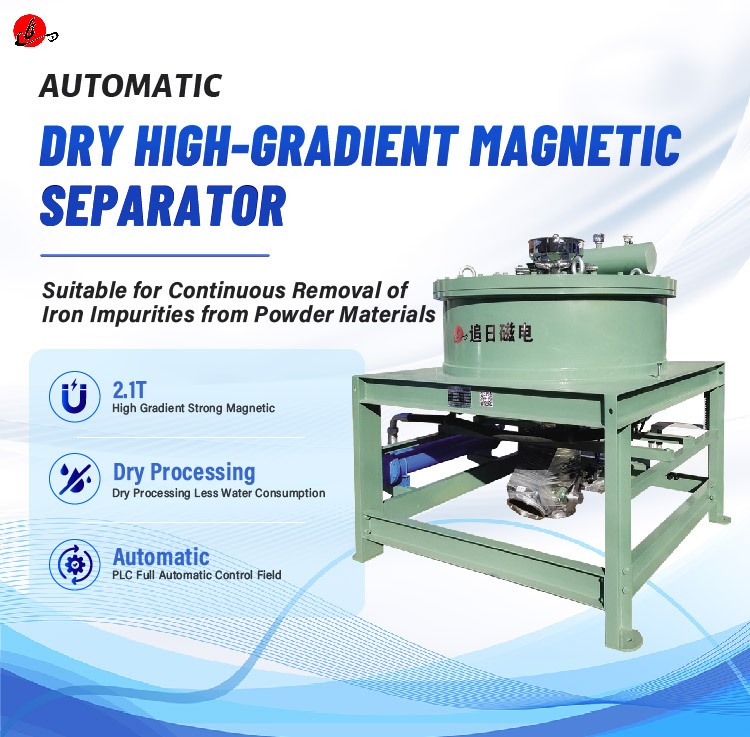

ZR0709-3-H Series Electromagnetic Separator
ZR0709-3-H Series Electromagnetic Separator is an advanced electromagnetic powder iron removal equipment. It is developed based on mature technology of ZR0709-2 Series Electromagnetic Powder Iron Remover, absorbing and optimizing advantages of similar equipment from USA, Japan and South Korea.
Compared with counterparts from US, Japan and South Korea, this magnetic separation equipment delivers stronger magnetic force and stable performance. All performance indicators meet or exceed imported equivalent equipment. It works as high efficiency iron remover for dry powder production, widely used as industrial magnetic separator for powder purification.

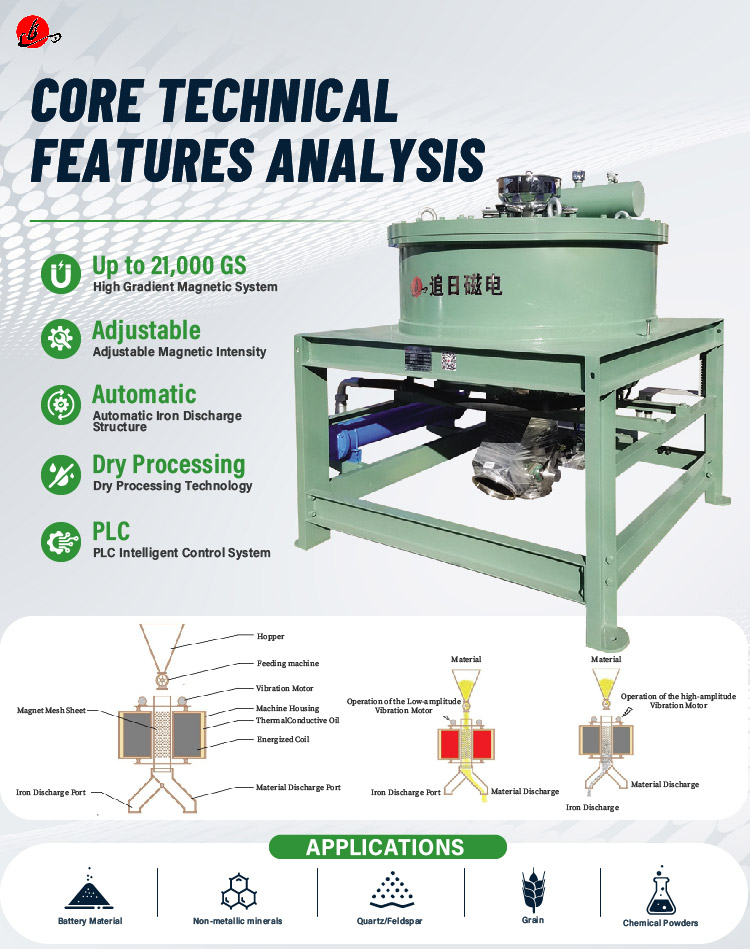

Working Principle & Core Advantages
- Advanced design: Optimized structure for dry powder iron removal, a reliable high gradient magnetic separator to eliminate weak magnetic iron impurities inside fine powder.
- High-pressure flushing system for fast, thorough cleaning; one cleaning cycle finished within more than ten seconds.
- Forced oil circulation and water cooling system for stable temperature control, preventing coil overheating damage.
- Real-time coil temperature monitoring to avoid burnout caused by excessive temperature rise.
- High iron removal efficiency: Unique internal structure and strong magnetic performance guarantee strict powder purity requirement, ideal iron separator for non-metallic mineral powder.
- Multiple magnetic filter media options available. Match different powder fineness to achieve optimal iron removal result, reduce tailing waste. Support custom magnetic separation solutions for different production lines.
Application Scenarios
This Dry magnetic separator is designed for dry powder processing, suitable for magnetic separator for mineral processing, magnetic separator for battery material, chemical powder, ceramic raw material, quartz powder, abrasive and food powder purification.
It removes iron contamination effectively, so also named magnetic separator for removing iron contamination. This easy maintenance magnetic separator supports continuous automatic running for industrial powder production.
Technical Parameters
| Model No. | Hollow magnetic field(Gs) | Input voltage | Excitation power(Kw) | Weight(kg) |
| ZR0709S-3-15H1 | 3200 | AC380V/50HZ Three phase four-wire | 6.8 | 2650 |
| ZR0709S-3-20H1 | 8.5 | 3000 | ||
| ZR0709S-3-25H1 | 10 | 3350 | ||
| ZR0709S-3-30H1 | 15.3 | 3700 | ||
| ZR0709S-3-40H1 | 18 | 4900 | ||
| ZR0709S-3-15H2 | 4000 | 8.5 | 2900 | |
| ZR0709S-3-20H2 | 10.5 | 3300 | ||
| ZR0709S-3-25H2 | 14.1 | 3600 | ||
| ZR0709S-3-30H2 | 18 | 4000 | ||
| ZR0709S-3-40H2 | 22 | 6300 | ||
| ZR0709S-3-15H3 | 5000 | 10.5 | 3200 | |
| ZR0709S-3-20H3 | 14.1 | 3600 | ||
| ZR0709S-3-25H3 | 18 | 4000 | ||
| ZR0709S-3-30H3 | 22 | 4700 | ||
| ZR0709S-3-40H3 | 26 | 7200 | ||
| ZR0709S-3-15H4 | 6000 | 13.6 | 3500 | |
| ZR0709S-3-20H4 | 18 | 3900 | ||
| ZR0709S-3-25H4 | 24 | 4500 | ||
| ZR0709S-3-30H4 | 26.0 | 6300 | ||
| ZR0709S-3-40H4 | 31.5 | 8500 |
Key Features Summary
Our Electromagnetic separator is built for dry powder industry. It is not wet type separator. It can serve as magnetic separator for chemical industry, magnetic separator for food industry and magnetic separator for recycling. It is easy maintenance magnetic separator with high efficiency, ideal choice for dry powder iron removal and purification.
